ANSI-150,JIS-10K |
|
FIG.964-A-不銹鋼昇桿式閘閥 | |
STAINLESS STEEL GATE VALVE |
|
Outside screw and yoke,Rising stem,Wedge disc,Renewable gland packing under pressure,Bolted bonnet,Flanged ends.(RF)
|
|
FIG.964-A,964-J(CF-8)
FIG.965-A,965-J(CF-8M)
單位/mm
|
|
|
零件
PARTS NAME |
材質 MATERIAL |
|
964 |
965 |
|
閥體 BODY |
A351-CF8 |
A351-CF8M |
|
閥蓋 BONNET |
A351-CF8 |
A351-CF8M |
|
閥桿 STEM |
SUS304 |
SUS316 |
|
閥盤 DISC |
A351-CF8 |
A351-CF8M |
|
格蘭 GLAND |
A351-CF8 |
A351-CF8M |
|
GLAND PACKING |
PTFE(OPTION:GRAFOIL) |
|
手輪 HANDWHEEL |
DUCTILE IRON |
|
墊片 GASKET |
PTFE(OPTION:GRAFOIL) |
|
BONNET BOLT/NUT |
SUS 304 |
|
GLAND BOLT/NUT |
SUS 304 |
|
YOKE SLEEVE |
BRONZE | |
|

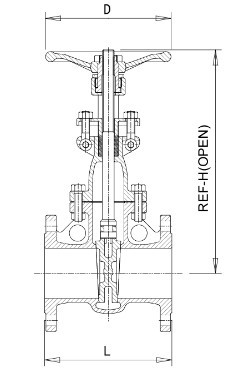

尺 寸 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
L
|
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
|
H
|
185 |
210 |
220 |
270 |
270 |
320 |
380 |
445 |
523 |
606 |
710 |
920 |
1117 |
1324 |
|
D |
90 |
90 |
100 |
100 |
140 |
160 |
180 |
200 |
225 |
250 |
250 |
300 |
350 |
400 |
| 註1：可供貨ANSI 300LB全尺寸產品。 |
| 註2：閥座可加焊STELLITE(司太立合金)耐磨料。 | |
| ● |
APPLICABLE CLASS 150 STANDARDS:
Face-To-Face: ANSI B 16.10
End Flanges: ANSI B 16.5
Pressure-Temperature Rating: ANSI B 16.34 |
| ● |
APPLICABLE JIS 10K STANDARDS:
Face-To-Face: JIS B2002
End Flanges: JIS B2238
Pressure-Temperature Rating: JIS B 2238 | | |
