GD341X管网法兰蝶阀-上海铁王阀门 |
| |
产品型号： |
GD341X |
| |
|
| |
 |
| |
咨询电话：021-51879176 黄先生 |
|
|
 |
|
GD341X管网法兰蝶阀-上海铁王阀门
一、GD341X管网法兰蝶阀概述：
适用介质：淡水、污水、海水、空气、蒸汽、食品、药品、各种油类、酸类、碱类、盐类等。

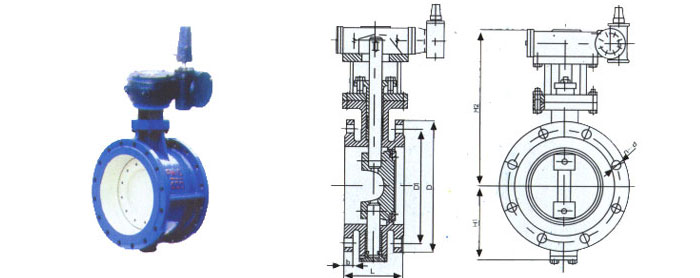

二、GD341X-6、10、16ZP、R、C连接尺寸：
|
通径DN |
L |
H |
H2 |
H3 |
A |
B |
D1 |
Z-d |
|
0.6MPa |
1.0MPa |
1.6MPa |
0.6MPa |
1.0MPa |
1.6MPa |
|
80 |
114 |
495 |
140 |
250 |
163 |
97 |
150 |
160 |
160 |
4-18 |
8-18 |
8-19 |
|
100 |
127 |
506 |
142 |
250 |
163 |
97 |
170 |
180 |
180 |
4-18 |
8-18 |
8-19 |
|
125 |
140 |
570 |
185 |
250 |
163 |
97 |
200 |
210 |
210 |
8-18 |
8-18 |
8-19 |
|
150 |
140 |
600 |
200 |
250 |
163 |
97 |
225 |
240 |
240 |
8-18 |
8-22 |
8-23 |
|
200 |
152 |
670 |
225 |
270 |
230 |
114 |
280 |
295 |
295 |
8-18 |
8-22 |
12-23 |
|
250 |
250 |
751 |
266 |
270 |
230 |
114 |
335 |
350 |
355 |
12-18 |
12-22 |
12-28 |
|
300 |
270 |
855 |
340 |
270 |
230 |
114 |
395 |
400 |
410 |
12-22 |
12-22 |
12-28 |
|
350 |
290 |
915 |
375 |
270 |
230 |
114 |
445 |
460 |
470 |
12-22 |
16-22 |
16-28 |
|
400 |
310 |
970 |
395 |
270 |
331 |
143 |
495 |
515 |
525 |
16-22 |
16-26 |
16-31 |
|
450 |
330 |
1015 |
420 |
270 |
331 |
143 |
550 |
565 |
585 |
16-22 |
20-26 |
20-31 |
|
500 |
350 |
1110 |
480 |
270 |
331 |
143 |
600 |
620 |
650 |
20-22 |
20-26 |
20-34 |
|
600 |
390 |
1303 |
515 |
343 |
487 |
377 |
705 |
725 |
770 |
20-26 |
20-30 |
20-37 |
|
700 |
430 |
1425 |
577 |
343 |
487 |
377 |
810 |
840 |
840 |
24-26 |
24-30 |
24-37 |
|
800 |
470 |
1523 |
620 |
343 |
487 |
377 |
920 |
950 |
950 |
24-30 |
24-33 |
24-40 |
|
900 |
510 |
1703 |
715 |
358 |
650 |
410 |
1020 |
1050 |
1050 |
24-30 |
28-33 |
28-40 |
|
1000 |
550 |
1793 |
755 |
358 |
650 |
410 |
1120 |
1160 |
1170 |
28-30 |
28-36 |
28-43 |
|
1200 |
630 |
2053 |
900 |
358 |
650 |
410 |
1340 |
1380 |
1390 |
32-33 |
32-39 |
32-49 |
|
1400 |
710 |
2320 |
995 |
425 |
940 |
460 |
1560 |
1590 |
1590 |
36-36 |
36-42 |
36-49 |
|
1600 |
790 |
2675 |
1150 |
425 |
940 |
460 |
1760 |
1820 |
1820 |
40-36 |
40-48 |
40-56 |
|
1800 |
870 |
2796 |
1247 |
425 |
940 |
460 |
1970 |
2020 |
2020 |
44-39 |
44-48 |
44-56 |
|
2000 |
950 |
3075 |
1360 |
425 |
940 |
460 |
2180 |
2230 |
2230 |
48-42 |
48-48 |
48-62 | GD341X管网法兰蝶阀-上海铁王阀门资料来自上海铁王阀门有限公司提供，如需转载请注明资料来源：http://www.899sx.com/products/detail/677.html |
|
|
|
